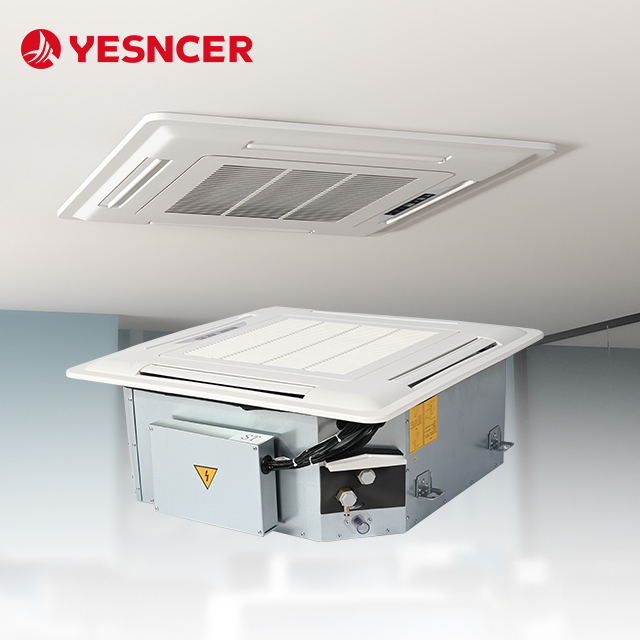

Ceiling-Mounted Chilled Water Fan Coil Unit | High-Efficiency Hydronic Fan Coil

This page only introduces the product. If you are interested, please click “Get A QUOTE” and our technical team will send the full product specifications.

Introduction

The fan coil unit has become a cornerstone in modern commercial HVAC systems, particularly in applications that require high efficiency, low noise, and adaptability to water-based cooling systems. Our ceiling-mounted chilled water fan coil unit is designed to meet the demands of offices, hotels, shopping centers, and other commercial environments where comfort, energy efficiency, and aesthetics are crucial. By combining advanced hydronic technology with high-efficiency airflow management, this unit delivers superior indoor climate control while minimizing energy consumption.

Water system fan coil solutions have increasingly become the preferred choice for environmentally-conscious building designers, architects, and facility managers. Unlike traditional air-based systems, hydronic fan coil units utilize chilled and heated water to condition air, providing precise temperature control with reduced environmental impact. The ceiling-mounted design further ensures unobtrusive installation and maximizes usable floor space, making it ideal for modern commercial interiors.

This article explores every aspect of our ceiling-mounted chilled water fan coil unit, from features and benefits to applications, installation, and maintenance. It also includes an FAQ section to address common questions about water system fan coil units in commercial settings.

Key Features

Ceiling-Mounted Design

The ceiling-mounted configuration allows the fan coil unit to be installed unobtrusively above workspaces or public areas. This design frees up floor space and contributes to a clean, modern interior aesthetic. It also provides excellent airflow distribution, ensuring that cooled or heated air reaches all corners of the room.

High-Efficiency Water System Integration

This fan coil unit integrates seamlessly with chilled water systems, making it a highly efficient solution for hydronic HVAC applications. The water system fan coil allows for precise temperature regulation, faster response to thermal loads, and reduced energy consumption compared to traditional air-cooled units.

Optimized Coil and Fan Design

Equipped with a copper/aluminum coil and high-efficiency fan, the unit maximizes heat transfer while maintaining low power consumption. The fan coil unit’s airflow design ensures even air distribution across the conditioned space, reducing hotspots and improving occupant comfort.

Low-Noise Operation

Our ceiling-mounted fan coil unit is designed with low-noise motors and spiral impellers, allowing it to operate quietly even at higher fan speeds. This feature makes it ideal for offices, meeting rooms, and hospitality spaces where noise control is critical.

Automatic Condensate Drainage

The unit comes with an integrated automatic condensate pump, preventing water accumulation and potential leaks. This feature ensures safe and reliable operation while reducing maintenance requirements.

Compatibility with 2-Pipe or 4-Pipe Systems

The unit supports both 2-pipe and 4-pipe chilled water systems, providing flexibility for various building designs and HVAC layouts. This compatibility allows facility managers to optimize energy use based on seasonal requirements.

Smart Control Options

Modern control systems can be integrated with the fan coil unit for intelligent operation, including scheduling, temperature sensing, and remote monitoring. This enhances efficiency while providing a comfortable indoor environment.

Benefits of the Ceiling-Mounted Chilled Water Fan Coil Unit

• Energy Efficiency: By leveraging hydronic heat exchange, our fan coil unit consumes less electricity compared to traditional forced-air systems. Water transfers thermal energy more effectively than air, which reduces overall HVAC energy usage and contributes to sustainability goals.
• Environmentally Friendly: Using water as a medium for heating and cooling reduces reliance on refrigerants, minimizing the unit’s environmental impact. This water-based fan coil unit aligns with modern green building standards, such as LEED and BREEAM certifications.
• Even Air Distribution: The ceiling-mounted installation, combined with an optimized fan and coil system, ensures consistent air distribution. Occupants experience fewer hot or cold spots, leading to improved comfort and productivity.
• Space-Saving Installation: The compact, ceiling-mounted design preserves valuable floor space, making it perfect for offices, conference rooms, hotel lobbies, and retail spaces where aesthetics and functionality are equally important.
• Quiet Operation: Low-noise fans and vibration-reducing components make this fan coil unit ideal for environments where quiet operation is essential.
• Flexible System Integration: Compatible with 2-pipe and 4-pipe systems, our fan coil unit allows facility managers to adapt to existing building infrastructure or design a highly efficient, future-proof HVAC system.

Applications

• Office Buildings: Provides consistent temperature control across open-plan workspaces and meeting rooms while maintaining a quiet environment.
• Hotels: Ideal for guest rooms, lobbies, and conference facilities, offering comfort and unobtrusive installation.
• Shopping Centers: Ensures even cooling across retail spaces, enhancing customer experience.
• Healthcare Facilities: Maintains strict temperature and air quality standards while operating quietly.
• Educational Institutions: Classrooms, libraries, and lecture halls benefit from energy-efficient, low-noise air conditioning.

Installation Guidelines

1. Ceiling Space Assessment: Ensure sufficient clearance for unit installation and future maintenance.
2. Piping Connections: Connect the unit to chilled and hot water supply lines, considering 2-pipe or 4-pipe configuration.
3. Drainage Setup: Install the automatic condensate pump according to manufacturer guidelines to prevent leaks.
4. Electrical Connection: Connect the unit to the building’s power supply and control systems.
5. Testing and Balancing: Verify airflow, water flow, and temperature control to ensure optimal performance.

Maintenance Tips

• Filter Cleaning: Clean or replace filters regularly to maintain airflow and indoor air quality.
• Coil Inspection: Check the heat exchanger for dirt or corrosion.
• Fan Inspection: Ensure fan blades and motor are clean and functioning properly.
• Condensate Drain: Verify the automatic pump is operating correctly to avoid water accumulation.
• Control Check: Test thermostats and control systems for proper operation.

Frequently Asked Questions (FAQ)

• Q1: Which spaces are suitable for this fan coil unit?
  A: Offices, hotels, conference rooms, shopping centers, and other commercial spaces requiring ceiling-mounted water system fan coils.
• Q2: Can it connect to a central water system?
  A: Yes, it is compatible with chilled and hot water systems.
• Q3: Is the unit noisy?
  A: Low-noise design ensures a quiet environment, suitable for workspaces and hospitality settings.
• Q4: Can it be used with 2-pipe or 4-pipe systems?
  A: Yes, the unit supports both system types for flexible installation.
• Q5: Is maintenance complicated?
  A: Routine maintenance is simple and includes filter cleaning, coil inspection, and condensate pump checks.

Conclusion: Our ceiling-mounted chilled water fan coil unit combines high efficiency, environmental friendliness, quiet operation, and flexible installation. It is ideal for modern commercial applications where energy efficiency, comfort, and aesthetics are essential.

This page only introduces the product. If you are interested, please click “Get A QUOTE” and our technical team will provide the complete product specifications.
